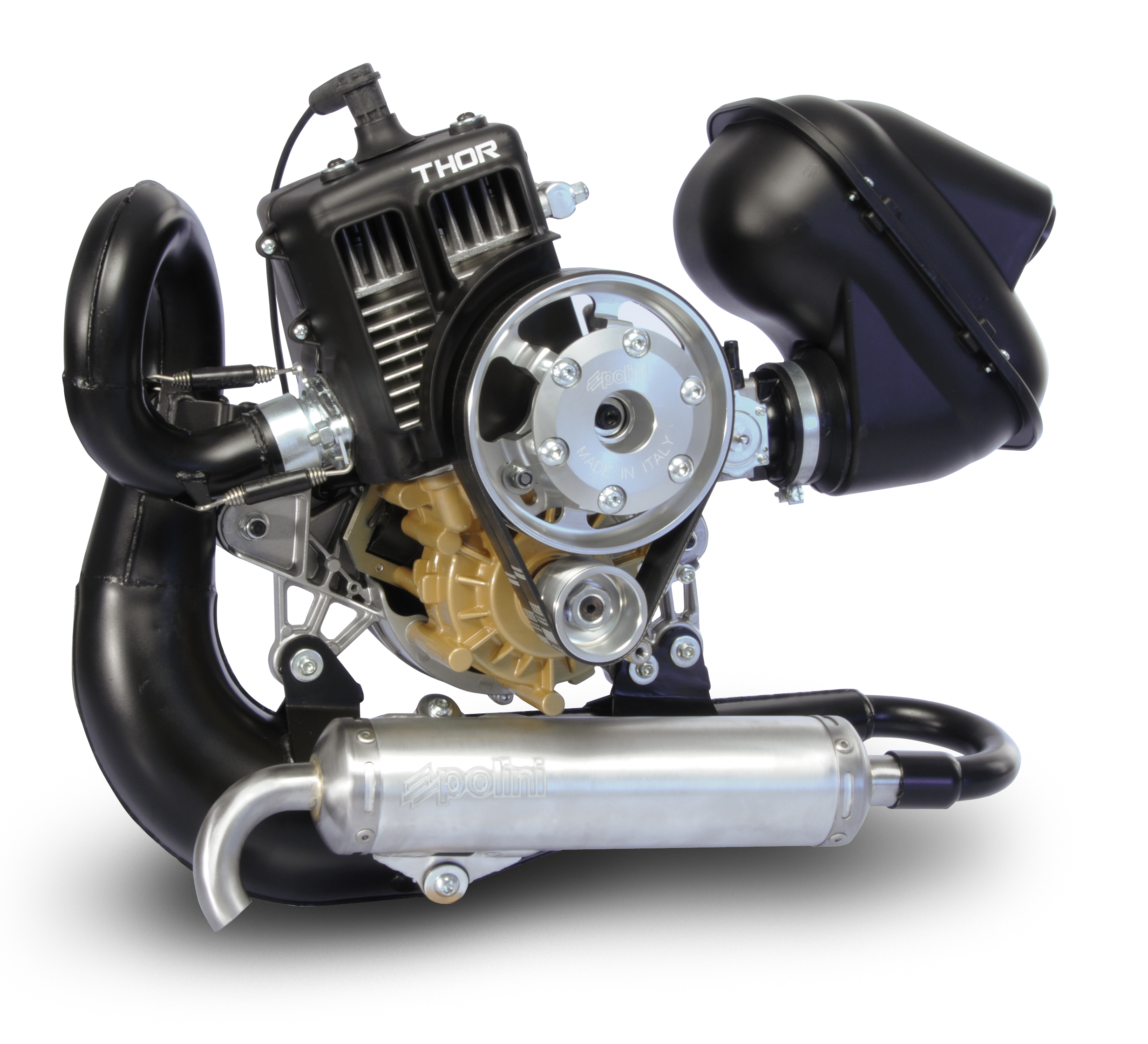

Thor 190 Light

FUERA DE PRODUCCIÒN

Instrucciones

Despieces

LISTA TÉCNICA

Polini Engine 2 stroke monocylinder
Cooling Forced air
Bore for stroke 64 x 60
Displacement 193 cm3
Power 27 HP a 7400 R.P.M.
Cylinder Aluminum with Gilnisil coating
Compression ratio 11,4:1
Piston Two chromium plated rings mm 1
Intake Reed valve in the crankcase
Carburetor Walbro
Air filter Air box
Ignition Electronic with inductive discharge
Battery charger prearrangement Output power 80 W at 5500 RPM (with electric starter only)
Spark plug hood 5k Ω resistance
Fuel type Lead free petrol with 2% synthetic oil
Gear reduction unit Belt transmission with 2,83 reduction ratio
Starter (Option electric starter) Pull starter with self-winding rope.
Clutch Not supplied
Muffler Expansion with aluminum silencer
Engine weight 13,2 Kg (15,3 with electric starter)
Propeller rotation Counterclockwise
