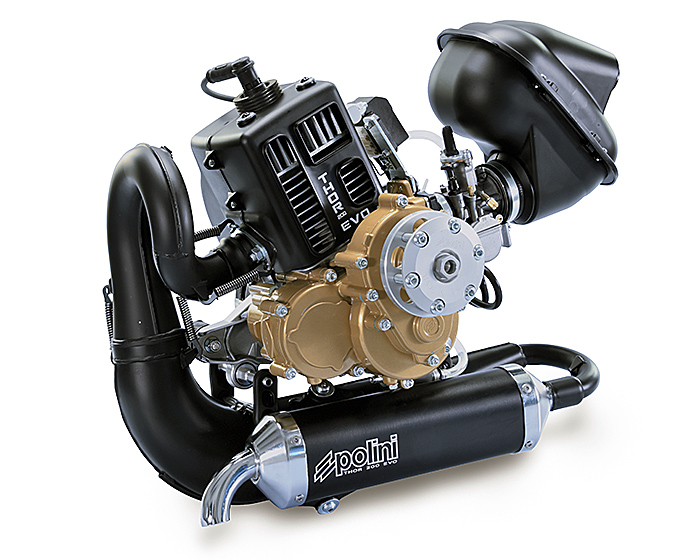

Thor 200 EVO

FUERA DE PRODUCCIÒN

Instructions

Walbro setting

TECHNICAL LIST

Polini Engine 2 stroke monocylinder
Cooling Forced air
Bore for stroke 64 x 60
Displacement 193 cm3
Power Walbro carb. 28 HP a 7400 RPM / Pwk carb.model 29 HP a 8000 RPM
Cylinder Aluminum with Gilnisil coating
Compression ratio 11,4:1
Piston Two chromium plated rings mm 1
Intake Reed vale in the crankcase
Carburetor Walbro / Polini Float Ø28
Air filter Air box
Ignition Electronic with battery charger possible
Battery charger prearrangement Output power 80 W at 5500 RPM
Spark plug hood 5k Ω resistance
Fuel type Lead free petrol with 2% synthetic oil
Gear reduction unit Helical teeth in oil bath with 2,8 reduction ratio
Starting Pull start with self winding cable Flash Starter – Electric starter (optional)
Clutch Centrifugal in oil bath
Muffler Expansion with oval silencer
Engine weight 17,5 Kg (18,5 with electric starter)
Propeller rotation Clockwise
