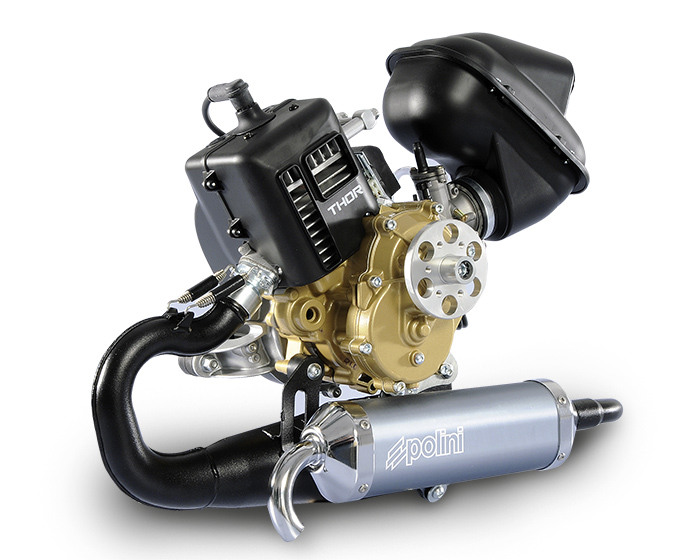

Thor 130

FUERA DE PRODUCCIÒN

Instrucciones

Despieces

LISTA TÉCNICA

Polini Engine 2 stroke monocylinder
Cooling Forced air
Bore for stroke 54 x 54
Displacement 125 cm3
Power 21,5 HP at 8800 R.P.M.
Cylinder Aluminum with Gilnisil coating
Compression ratio 12,5:1
Piston Two chromium plated rings mm 1
Intake Reed valve in the crankcase
Carburetor Walbro / Polini PWK
Air filter Air box
Ignition Electronic and with battery charger possible
Battery charger prearrangement Output power 80 W at 5500 RPM
Spark plug hood 5k Ω resistance
Fuel type Lead free petrol with 2% synthetic oil
Gear reduction unit Helical teeth in oil bath with 3,43 reduction ratio
Starting Pull start with self winding cable Flash Starter
Clutch Centrifugal in oil bath
Muffler Expansion with oval silencer
Engine weight 13,8 Kg
Propeller rotation Clockwise
